Network cable coiling length normally is 1000 feet(305m), currently
mainly use box no twist free wire pay-off. Coiling into a special
"8" shape.
This equipment is designed for coiling network cables cables into
an 8-shaped coil with anti-winding rings.
It creates a hole in the center of the coil to facilitate wire
extraction during packaging.
The Network Cable Coiling Machine is a specialized device designed
for efficiently coiling network cables, coaxial cables, and speaker
cables. Its primary function is to transform the cables into a
distinctive "8" shape, facilitating easy handling and packaging.
One of the standout features of this machine is its ability to
produce uniform and tightly wound coils, ensuring neat and
organized cable storage. This is achieved through the incorporation
of anti-winding rings, which prevent tangling during the coiling
process, resulting in smooth and hassle-free operation.
The equipment is equipped with a box-free, twist-free wire pay-off
system, allowing for seamless feeding of the cables during the
coiling process. This system helps maintain the integrity of the
cables and minimizes the risk of damage or deformation.
A notable aspect of this machine is its versatility, as it can
accommodate cables of various types and sizes. Whether it's network
cables, coaxial cables, or speaker cables, the device can
efficiently coil them into the desired shape with precision and
consistency.
Furthermore, the machine creates a hole in the center of each coil,
which serves a dual purpose. Firstly, it facilitates the extraction
of the wire from the coil during the packaging process,
streamlining the assembly of cable products. Secondly, it allows
for efficient air release, preventing any trapped air from
affecting the packaging quality.
| Feature | Description |
|---|
| Equipment Type | Network Cable Coiling Machine |
| Coiling Method | 8-Shaped Coil Formation with Anti-Winding Rings |
| Application | Suitable for Coiling Network Cables, Coaxial Cables, and Speaker
Cables |
| Coiling Length | Typically 1000 feet (305 meters) |
| Wire Pay-off | Box-Free Twist-Free Wire Pay-off |
| Coil Shape | Special "8" Shape for Efficient Coil Formation |
| Wire Extraction | Creates Hole in Center of Coil for Easy Wire Extraction during
Packaging |
| Anti-Winding Rings | Prevents Tangling and Ensures Smooth Coiling Process |
| Packaging Box Compatibility | Designed to Facilitate Placement of Coiled Cable into Packaging
Boxes |
| Versatility | Can Handle Various Types of Cables, Ensuring Flexibility in the
Manufacturing Process |
1. Application for 8 Figure LAN Cable Winding Machine With Double Heads
This equipment is applicable for lan cable winding in 8 figure.
Every coil is 305m long, and packed in box. The cable is easy to be
pull out in the packing way. The blank hole in the coil can be
adjustable on PLC.
2. Specification for 8 Figure LAN Cable Winding Machine With Double Heads
Product name | 8 Figure Lan Cable Winding Machine |
Type | Lan cable winding machine |
Applicable Wire Diameter | 1.8~8 mm |
Coil Inner Diameter | 200 mm |
Coil Outer Diameter | Max 500 mm |
Coil Height | 160~230 mm |
Wire Length per Coil | 100-305 m |
Rotation Speed | Max 250 rpm |
Weight | 1600 kg |
Measurement (L*W*H) | 8*2.2*2 m |
Workers recommendation | 1 worker |

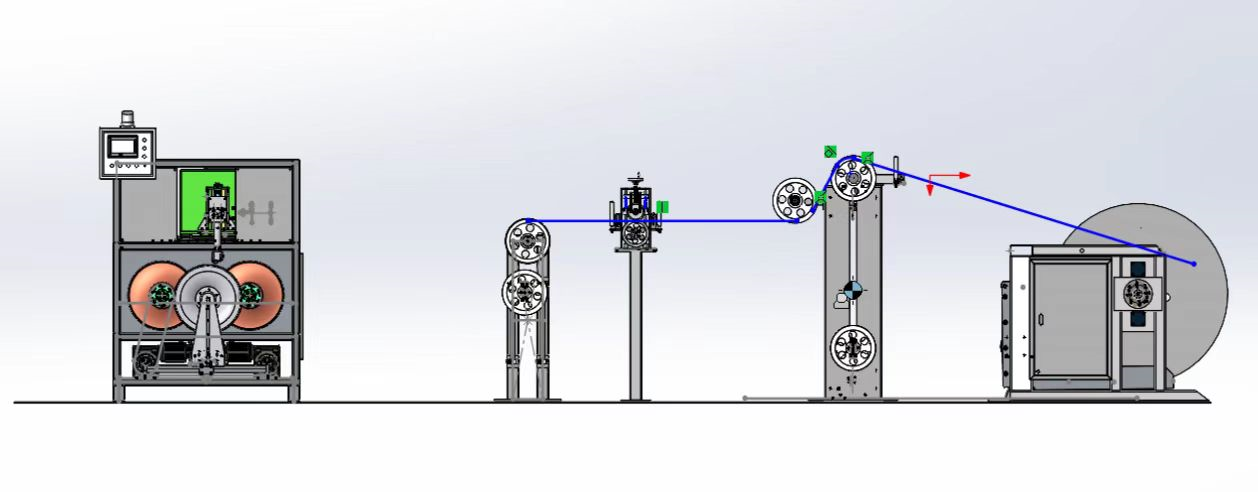

3. Component for 8-Figure LAN Cable Winding Machine With Double Heads :
| Item | All parts’ name and specification | quantity |
| 1 | 800mm-1250mm active pay-off stand ( Can design according to
customer's request ) | 1set |
| 3 | Tension stand | 1set |
| 4 | Double shaft coiling machine | 1set |
