    Multicore Indoor Fiber Optic Cable Machine(Cage stranding type)

    Ask Lasest Price
    Brand Name : I-suntop
    Model Number : I-70
    Certification : SGS
    Price : By negotiation
    Payment Terms : L/C,T/T
    Supply Ability : Up to different machine
    Delivery Time : Min.50working days
    • Product Details
    • Company Profile

    Multicore Indoor Fiber Optic Cable Machine(Cage stranding type)

    Fiber Optic Cable Machine For Distribution/Breakout Cable Sheathing

    i-suntop fiber optic cable machine 20220228.pdf

    1.Description for Fiber Optic Cable Machine For Distribution/Breakout Cable Sheathing:

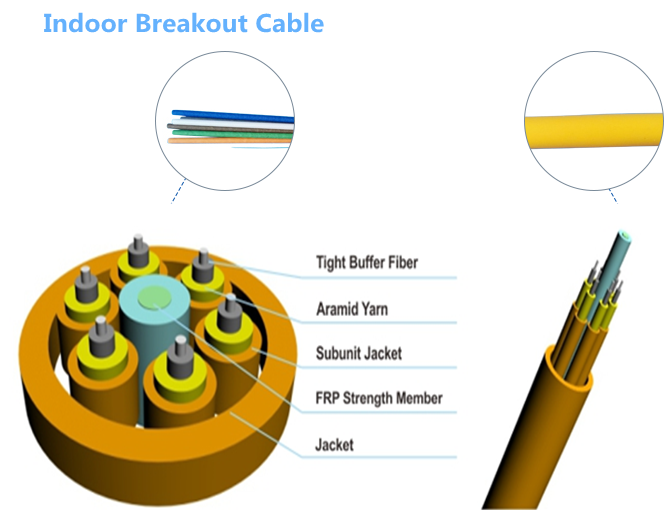

    This fiber optic cable making machine sheathes indoor /outdoor disctribution multi cores optical cable, tactical fiber cable with PVC, LSZH, PE jacket, outer diameter is 11.5mm max..

    2.Main specification of Fiber Optic Cable Machine For Distribution/Breakout Cable Sheathing:

    Machine type70×25 Extruder
    Suitable extrusion materialLSZH,PVC,PE
    Design speedMax.120m/min
    No of cage stranding machine12/24 reels
    Specification of cage stranding machine pay-off reels400mm
    Core wire diameter0.6/0.9/2.0
    Pay-off tension of tight buffered fiber1N-3N
    Aramid yarn pay off(passive or active optional)12/16/24
    Take-up reels SpecificationPN800 reel and PN1250 reel
    excess loss after extrusion1550nm<=0.02dB/km(single mold optical fiber)
    Center height of machine1000mm from background

    3.Main items for Fiber Optic Cable Machine For Distribution/Breakout Cable Sheathing(Cage stranding type):

    ItemsQty.
    Φ800-1250 central strength-member pay-off1set

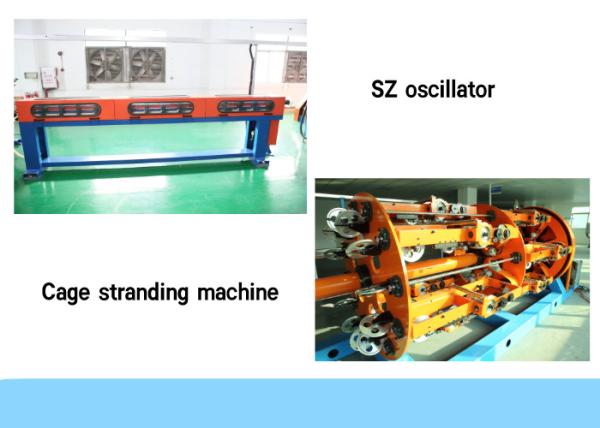

    12heads cage stranding machine2sets

    24 heads aramid yarn pay-off (motorized aramid yarn pay-off option available)

    1set
    Mobile mold supporting1set
    70 Main extruder1set
    75kg Dryer +hopper1set
    IPC+PLC control penal1set
    4m moving water trough and warm water tank1set
    12m fixed type cooling water trough and cooling water tank+chiller1set
    laser diameter gauge1set
    Accumulator1set
    dual-wheel capstan1set

    φ800 dual-wheel tension unit

    1set

    800-1250mm shaftless longmen type take-up

    1set
