    1200mpm Fiber Coloring Machine

    Ask Lasest Price
    Brand Name : I-suntop
    Model Number : I-1200
    Certification : SGS
    Price : By negotiation
    Payment Terms : L/C,T/T
    Supply Ability : 10sets/month
    Delivery Time : Min.40working days
    • Product Details
    • Company Profile

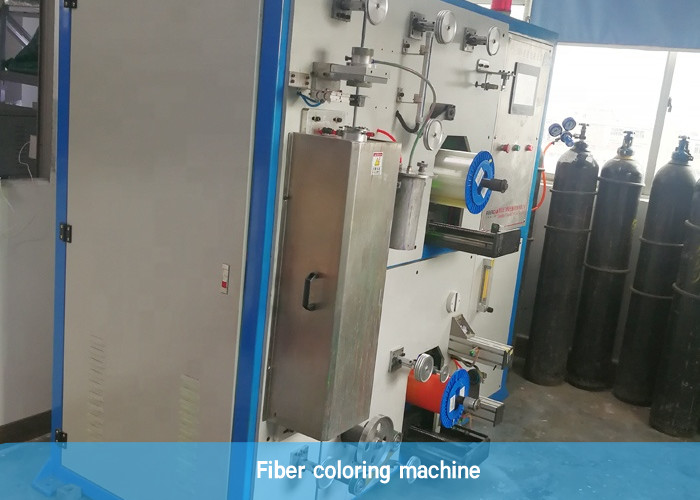

    1200mpm Fiber Coloring Machine

    GF-1200 Fiber Optic Cable Machine For Coloring And Rewinding

    i-suntop fiber optic cable machine 20220228.pdf

    1.Description for GF-1200 Fiber Optic Cable Machine For Coloring And Rewinding:

    The equipment is mainly used to color the surface of optical fibers and makes it easy to identify the multi-fibers within the loose tube. Also used to rewind fibers.

    2.Technical parameters of GF-1200 Fiber Optic Cable Machine For Coloring And Rewinding :

    Optical fiber number

    1

    Structure speed

    ≤1200m/min

    Coloring speed

    ≤1000m/min

    Rewinding speed

    ≤1200m/min

    Thickness of coloring layer

    3-5μm

    Pay-off tension

    0.4N-1.2N±0.05N

    Take-up tension

    0.4N-1.2N±0.05N

    Traversing pitch

    0.1-1.0mm±0.01mm

    Extra-attenuation after coloring

    ≤0.02dB/Km(SM , 1500Nm)

    Optical fiber reel size (max.)

    25km/50km reel weight 10kg

    Nitrogen purity

    ≥99.99%

    Compressed air

    0.5mpa

    3.Main Parts of GF-1200 Fiber Optic Cable Machine For Coloring And Rewinding:

    A. Movable optical fiber pay-off unit

    B. Fiber coloring and material supply system

    C. UV curing oven

    D. Capstan and counter unit

    E. Take-up and traversing unit

    F. Electric control system and software

    G. Air fan
