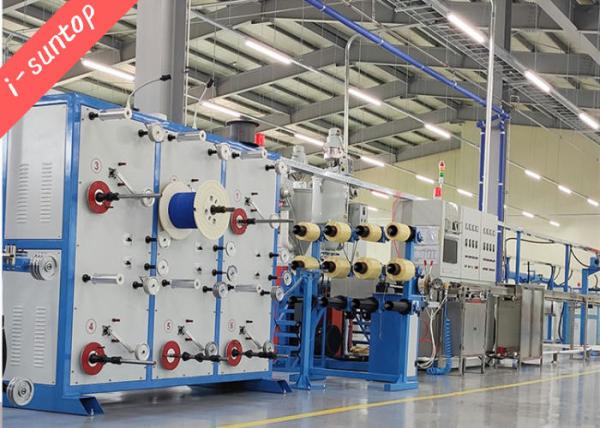

LSZH Material FTTH Drop Optic Cable Production Line With CE
Certificate
i-suntop
fiber optic cable machine 20220228.pdf
1.Description for FTTH Drop Optic Cable Production Line:
This Optical cable production line makes FTTH drop fiber optic
cable 2.0x3.0mm, 2.0x5.0mm. Cable structure: bare fibers + steel
wires/FRP strengthen members + LSZH/PVC/PE sheath, and other
similar cables.
2.Features for FTTH Drop Optic Cable Production Line:
1), Precision special extruder and precision free adjustment head,
the extruder is suitable for materials such as PVC, LSZH, PE and
other materials.
2). The surface of the cable is smooth.
3). Optical fibers are motorized released. The tension is precisely
constant and the additional loss is small.
4). The temperature control is controlled by imported OMRON
temperature control meter, and the temperature control is accurate.
5), double-reels automatic take-up, stable and reliable operation,
automatic line-receiving of the take-up line, no need to rewind.
6), International industrial computer technology control system
with high degree of automation, it can be linked with MES, ERP
systems, real time tracking and managing production.
7). The main control systems and components are international
famous brands, and the production line has high stability and
reliability.
3.Technical parameters of FTTH drop cable production line :
Extruder type | 50×25 Extruder |
extrusion material | LSZH,PVC |
structure speed | Max.150m/min |
production speed | Max.100m/min(LSZH);120m/min(PVC) for 2.0*3.0mm FTTH |
No of optical fiber pay-off reels | 2 or 4 reels |
Specification of optical fiber pay-off reels | 25km and 50km standard optical fiber reels |
Pay-off tension of optical fiber | 0.4N-1.5N |
Heads no of reinforcement pay-off rack | 2 heads |
Specification of reinforcement pay-off reels | PN400 reels and ø254×ø116×ø180×ø32 reels |
reinforcement Specification | ø0.4-ø1.0 |
Pay-off tension of reinforcement | 5N-20N |
Take-up tension | 5-15N |
Take-up reels Specification | PN400 reel and PN600 reel(central shaft hole diameter ø 56) |
excess loss after extrusion | 1550nm<=0.2dB/km(single mold optical fiber) |
Center height of machine | 1000mm from background |
4.Line Configuration for FTTH Drop Optic Cable Production Line:
Items | Qty. |
Φ800 Stengthen member bigger steel wire pay-off | 1set |
4 heads fiber +2head FRP/ small Steel wire pay-off | 1set |
Mobile mold supporting | 1set |
50 extruder | 1set |
Dryer +hopper | 1set |
IPC+PLC program control systerm | 1set |
moving water trough and warm water tank | 1set |
fixed type cooling water trough and cooling water tank | 1set |
laser diameter gauge | 1set |
dual-wheel capstan | 1set |
cable accumulator | 1set |
dual-shaft take-up | 1set |
