    Danfoss Servo Motor 30KW Fiber Optic Cable Machine For Tight Buffered Fiber

    Ask Lasest Price
    Brand Name : I-suntop
    Model Number : I-30
    Certification : SGS
    Price : By negotiation
    Payment Terms : L/C,T/T
    Supply Ability : Up to different machine
    Delivery Time : Min.30working days
    • Product Details
    • Company Profile

    Danfoss Servo Motor 30KW Fiber Optic Cable Machine For Tight Buffered Fiber

    0.6/0.9mm Tight/Loose/Semi-Loose Buffered Fiber Optic Cable Machine

    i-suntop fiber optic cable machine 20220228.pdf

    1. Application for 0.6/0.9mm Tight/Loose/Semi-Loose Buffered Fiber Optic Cable Machine:

    Tight coating line is used to extrude tight buffer fiber which the diameter is 0.6mm and 0.9mm.The extruding material can be LSZH, PVC.

    2. Advantage for 0.6/0.9mm Tight/Loose/Semi-Loose Buffered Fiber Optic Cable Machine:

    A. High configuration,the machine use IPC+PLC control system

    B. main electric parts are importing,screw adopt the modern latest technology

    C. Gear tooth surface abrasion resistance.Low energy consumption of the equipment,a large quantity of extrusion, high production efficiency, high gloss surface,small temperature difference,low noise, good stability, strong continuity of working, convenient operation, long service life.

    3. Technical parameters of 0.6/0.9mm Tight/Loose/Semi-Loose Buffered Fiber Optic Cable Machine:

    Number of optical fiber Pay-off

    2 spools

    Optical fiber pay-off tension

    0.4-1.2N

    Optical fiber reel size

    Φ236×108mm×Φ160

    Φ236×236mm×Φ160

    Structure speed

    500m/min

    Working speed

    400m/min(0.9mm,PVC)

    Tight buffer fiber dia

    0.6mm , 0.9mm

    Extruded material

    PVC, LSZH

    Extra-attenuation

    ≤0.02dB/km(1310nm,1550nm)

    Metering accuracy

    ≤0.2%

    Installed power

    About 30KW

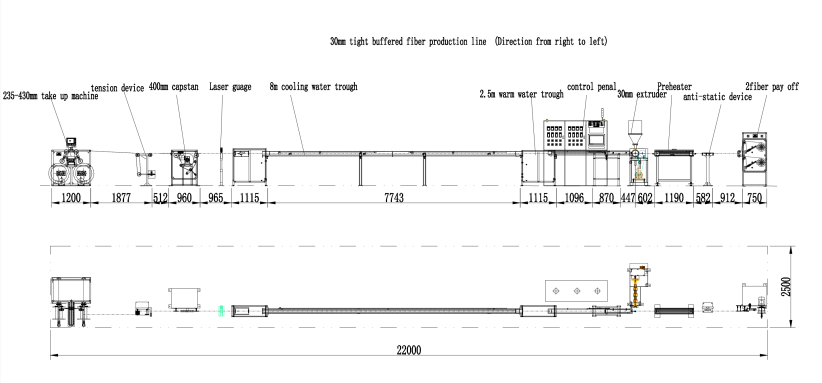

    4. Line Configuration for 0.6/0.9mm Tight/Loose/Semi-Loose Buffered Fiber Optic Cable Machine:

    NOAll parts’ name and specification ofQTY
    1double-heads drive pay-off rack1set
    2φ30mm main extruder1set
    325KG hopper dryer and automatic sucking machine

    1set

    4free adjustable head1set
    5IPC+PLC control cabinet

    1set

    62.5M primary and secondary movable heating water trough1set
    7laser diameter gauge1set
    88M single-layer U-type fixed type cooling water trough1set
    9single-wheel capstan1set
    10take up tension dancer1set
    11semi-auto double-shaft take-up machine1set
    13Preheat oven1set
    14Stand-by parts1set
    15Providing tools1set
    16Providing data1set
