    144 Core Fiber Optic Cable Extrusion Machine With Armour Sheathing

    Ask Lasest Price
    Brand Name : I-suntop
    Model Number : I-90
    Certification : SGS
    Price : By negotiation
    Payment Terms : L/C,T/T
    Supply Ability : Up to different machine
    Delivery Time : Min.50working days
    • Product Details
    • Company Profile

    144 Core Fiber Optic Cable Extrusion Machine With Armour Sheathing

    144 Core Direct Burial/Aerial Fiber Optic Cable Machine With Armour Sheathing

    i-suntop fiber optic cable machine 20220228.pdf

    1. Application for 144 Core Direct Burial/Aerial Fiber Optic Cable Machine With Armour Sheathing:

    Fiber optic cable sheathing line is designed for extruding cable inner sheath and outer sheath. It is suitable to extrude LDPE, MDPE, HDPE, PVC, LSZH, PU etc. to produce different structural forms of fiber optic cable, such as ADSS, GYTY, GYTS, GYTA, GYXT, GYXTW, GYFTY, GYFTA, GYTY53, GYTA53, GYTS53, ETC..

    2. Specification for Main items of 144 Core Direct Burial/Aerial Fiber Optic Cable Machine With Armour Sheathing:

    Diameter of cable core

    4.2-30mm

    Diameter of loose tube

    1.8-4mm

    Diameter of cable

    6-35mm

    Thickness of cable wall

    1.0-3.0mm

    Line structure speed

    100m/min

    Line production speed

    80m/min(cable dia:10mm)

    Additional attenuation

    0.02dB/km (1310and 1550)

    Extruder output

    Max280kg/h

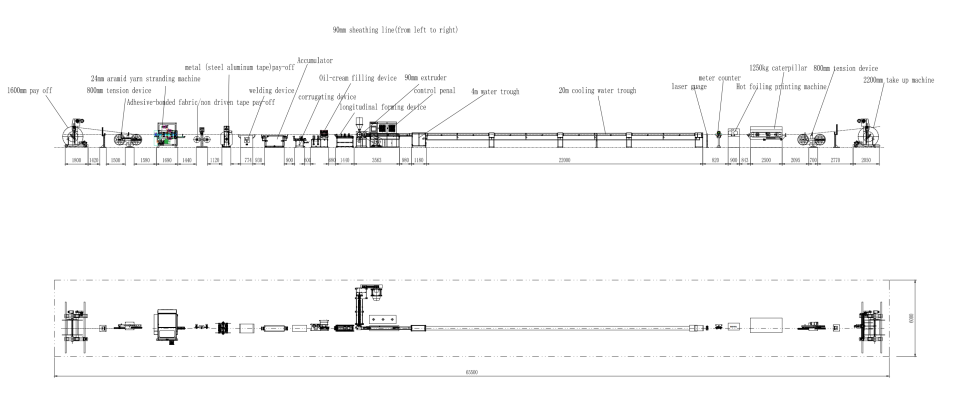

    3. Main items for 144 Core Direct Burial/Aerial Fiber Optic Cable Machine With Armour Sheathing:

    Items

    Qty.

    800-1600mm Cable core pay-off

    1set

    Φ800 tension unit

    1set

    Cable jelly filling device

    1set

    Water blocking tape pay off

    1set

    Dual wheels steel / aluminium tape pay-off

    1set

    Steel /aluminum tape accumulator

    1set

    On-line seam welding device (Steel & Aluminum tape)

    1set

    Metal tape (Steel-Aluminum tape) corrugating device

    1set

    Metal tape (Steel-Aluminum tape) longitudinal forming device

    1set

    Φ90 extruder

    1set

    100KG Dryer machine and automatic hopper

    1set

    IPC+PLC program electricity control cabinet

    1set

    4m Stainless steel warm water trough and water tank

    1set

    16m Single-layer U-type stainless steel cooling water trough(with dryer and silencer device)

    1set

    Diameter laser gauge

    1set

    Spark machine

    1set

    Caterpillar type capstan machine

    1set

    Take up tension unit

    1set

    800-1600mm Take up machine

    1set
