190m/Min Duplex Fiber Optic Cable Production Line For FTTH Drop Cable

Ask Lasest Price
Brand Name :	I-suntop
Model Number :	I-50
Certification :	SGS
Price :	By negotiation
Payment Terms :	L/C,T/T
Supply Ability :	Up to different machine
Delivery Time :	Min.30working days

Add to Cart

Product Details
Company Profile

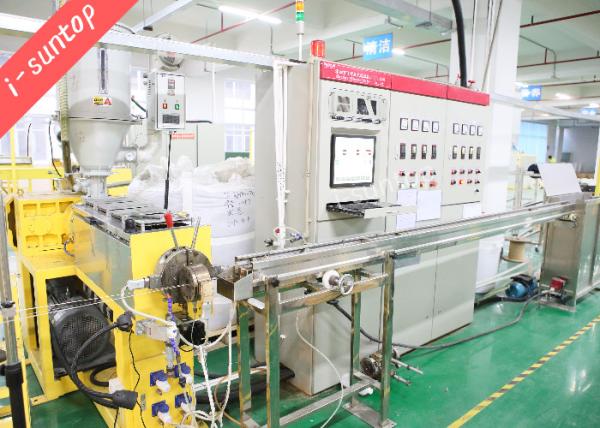

190m/Min Duplex Fiber Optic Cable Production Line For FTTH Drop Cable

FTTH drop cable +Simplex/duplex Fiber Optic Cable Production Line

i-suntop fiber optic cable machine 20220228.pdf

1. Description for FTTH drop cable +Simplex/duplex Fiber Optic Cable Production Line:

This fiber optic cable production line makes FTTH drop cable +Simplex/duplex Fiber Optic Cable, outer diameter 5.0mm max.

Cable structures:

A. Simplex duplex patchcord cable outer diameter: 1.2/1.6/2.0/3.0mm, 0.6/0.9mm buffer fibers + Kevlar/aramid yarn strengthen members + LSZH/PVC sheath.

B. Multi core distribution cable outer diameter 5.0mm max., 6core 0.9mm buffer fibers +Kevlar/aramid yarn strengthen members + LSZH/PVC sheath.

C. Mini micro indoor fiber optical cable outer diameter 3.8mm max. up to 24core colored bare fibers +Kevlar/aramid yarn strengthen members + LSZH/PVC sheath.

D. FTTH drop cable :bare fibers + steel wires/FRP strengthen members + LSZH/PVC/PE sheath,

2. Technical parameters of FTTH drop cable +Simplex/duplex Fiber Optic Cable Production Line :

Extruder type	50×25 /65×25 Extruder
extrusion material	LSZH,PVC,PE
structure speed	Max.190m/min
production speed	Max.120m/min(LSZH);100m/min(PVC) for 2.0*5.0mm FTTH
No of optical fiber pay-off reels	2 or 4 reels
Specification of optical fiber pay-off reels	25km and 50km standard optical fiber reels
Pay-off tension of optical fiber	0.4N-1.5N
Heads no of reinforcement pay-off rack	2 heads
Specification of reinforcement pay-off reels	PN400 reels and ø254×ø116×ø180×ø32 reels
reinforcement Specification	ø0.4-ø1.0
Pay-off tension of reinforcement	5N-20N
Take-up tension	5-15N
Take-up reels Specification	PN400 reel and PN630 reel(central shaft hole diameter ø 56)
excess loss after extrusion	1550nm<=0.2dB/km(single mold optical fiber)
Center height of machine	1000mm from background

3. Line Configuration for FTTH drop cable +Simplex/duplex Fiber Optic Cable Production Line:

Items	Qty.
Φ800 Stengthen member bigger steel wire pay-off	1set
4 heads fiber +2head FRP/ small Steel wire pay-off	1set
Passive /active aramid yarn pay off
Mobile mold supporting	1set
50 extruder with two crosshead,one for FTTH drop cable,one for simplex/duplex cable	1set
50kg Dryer +hopper	1set
IPC+PLC program control systerm	1set
2.5m moving water trough and warm water tank	1set
8m fixed type cooling water trough and cooling water tank+chiller	1set
laser diameter gauge	1set
dual-wheel capstan	1set
cable accumulator	1set
400-630mm dual-shaft take-up	1set
