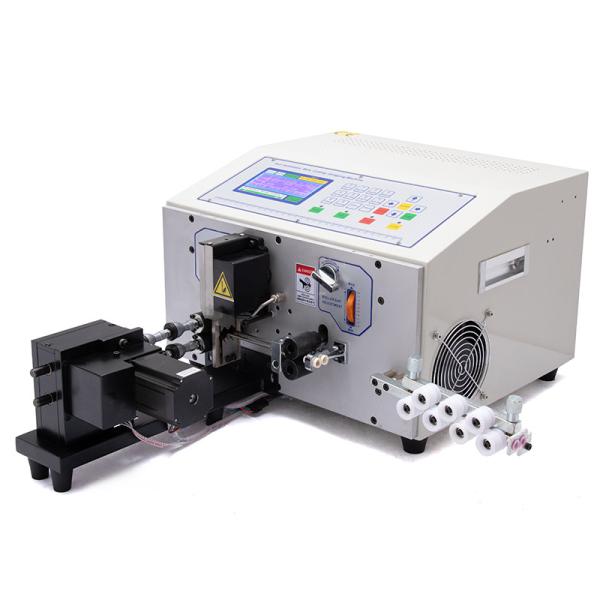

    Low Noise 450W Wire Stripping And Crimping Machine Automatic

    Ask Lasest Price
    Brand Name : I-SUNTOP
    Model Number : isp-1897
    Certification : SGS
    Price : By negotiation
    Payment Terms : L/C, T/T
    Supply Ability : Up to different machine
    Delivery Time : Min.30working days
    • Product Details
    • Company Profile

    Low Noise 450W Wire Stripping And Crimping Machine Automatic

    0.1-6.0mm2 Automatic Wire Stripping ,Cutting And Twisting Machine

    1. Description of Automatic Wire Stripping And Twisting Machine

    ·The machine adopts the digital intelligent control device, the key operation, the performance is stable, the operation is convenient

    ·Aimed at the electronic wire, silicon rubber wire, wire, fiberglass wire, isolation line, and other automatic cutting, stripping and semi-stripping

    2. Technical of Description of Automatic Wire Stripping And Twisting Machine

    Wire range

    0.1-6.0mm2 (AWG10-AWG32)
    Min cutting and twisting length 30mm

    Stripping lengths

    Front end:0-50mm (1.95in) Rear end:0-30mm (1.17in)

    Twisting lengths

    Front end :0-50mm (1.95in) Rear end:0-30mm (1.17in)

    Max.conduit diameter

    6-7mm(0.234-0.273in)

    Length accuracy

    ±(0.002*L)mm

    Productivity

    83-167pcs/min (L=100mm)

    Noise level

    <70dBA

    Electrical connection

    AC 220/110V/50/60HZ 450W

    Operation interface

    Bilingual

    Wire material

    PVC, Braided ,Fiberglass Wire

    Machine dimension

    420*390*280mm (16.38*15.21*10.92in)

    Weight

    32kg

    3. Features for Automatic Wire Stripping And Twisting Machine

    Low Noise 450W Wire Stripping And Crimping Machine Automatic
