Automatic 4000bars/H Wire Stripping Cutting Machine Four Wheel Drive

Ask Lasest Price
Brand Name :	I-suntop
Certification :	SGS
Price :	By negotiation
Payment Terms :	L/C,T/T
Supply Ability :	Up to different machine
Delivery Time :	Min.30working days

Add to Cart

Product Details
Company Profile

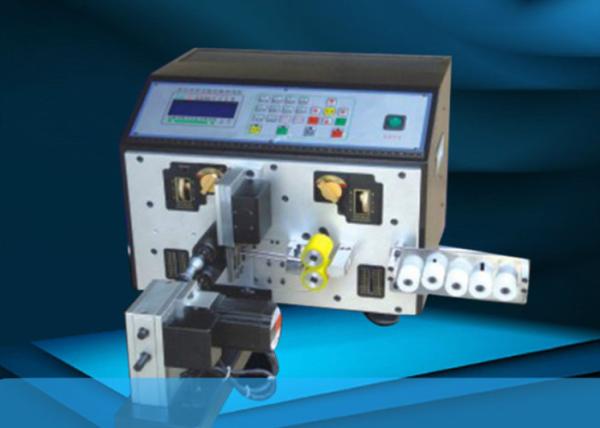

Automatic 4000bars/H Wire Stripping Cutting Machine Four Wheel Drive

Automatic Insulation And Sheath Wire Stripping Peeling Cutting Machine

i-suntop Electric wire and cable equipments2022022...

1. Usage for Automatic Insulation And Sheath Wire Stripping Peeling Cutting Machine

Usage for cable stripper or cutting, and mainly for switch board machine, electric working, Construction building etc.

With key operation , the length of the peeling ,the stripping head and half strip can be set optionally at high speed mode.low cost and endurable ,there is no need for maintenance.

It can cut and peel wires less than 6 mm², widely used in auto and electricity industries .with high speed and high precision drive,the stripping series adopted step driving.

2. Main paramters for Automatic Insulation And Sheath Wire Stripping Peeling Cutting Machine

Model	10 square wire stripper	16 square wire stripper	25 square wire stripper
Cutting length	1mm-9999mm	1mm-9999mm	1mm-9999mm
Stripping length	Head stripping 30 tail stripping 20	Head stripping 20 tail stripping 20	Head stripping 20 tail stripping 20
Cutting line core	0.1-10 mm square	0.1-16 mm square	0.1-25 mm square
The middle strip	15	15	15
Vessel diameter	1.5 -10 mm	1.5 - 12 mm	1.5 -15 mm
The blade material	Imported high speed steel	Imported high speed steel	Imported high speed steel
Drive way	Four-wheel drive	Four-wheel drive	Four-wheel drive
The power supply	AC220V/110V	AC220V/110V	AC220V/110V
Overall dimensions	400 * 300 * 330	450 * 360 * 380	450 * 360 * 380
The weight of the	28KG	35KG	45KG
The production efficiency	3,000-8,000 bars/h	2000-5000 bars/h	2000-4000 bars/h
Line pressure to adjust	There are	There are	There are
Note function	Automatic outgoing line, incoming line, timed start, silent hybrid stepping motor

3. Advantages for Automatic Insulation And Sheath Wire Stripping Peeling Cutting Machine

It is superior in performance, safety operation and convenience
Automatic cutting and stripping machine incorporates the most advanced technology.
Fully computerized with LCD display and can store up to 248 information.
New improved safety features ensure "zero" wastage.
The machine can stop operating automatically if it reaches the end of the coil wire.
One-year warranty, full-life service
