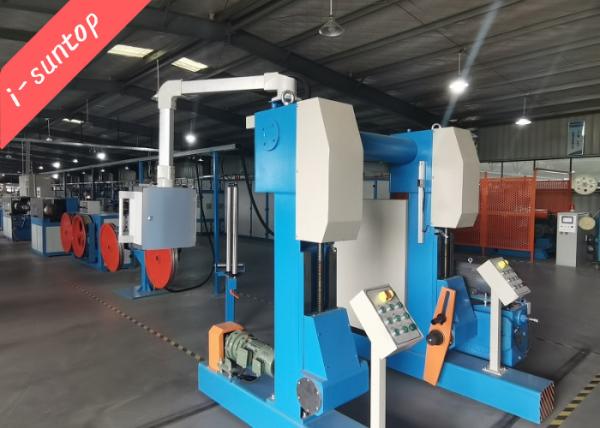

60Hz Power Wire Take Up Machine Portal Type Cable Manufacturing Machine

Power Wire Cable Portal Type Gantry Traversing Take Up Making Machine

i-suntop Electric wire and cable equipments2022022...

1. Application for Power Wire Cable Portal Type Gantry Traversing Take Up Making Machine :

This equipment is applicable to Winding and coiling all kinds of cable into a bobbin.

2. Technical parameters for Power Wire Cable Portal Type Gantry Traversing Take Up Making Machine :

Model	Φ630/1250	Φ800/1600	Φ1000/2000	Φ1250/2500	Φ1600/3150	Φ1600/3500
Cable Dia. (mm) Max	35	50	70	100	120	130
Bobbin flange dia. (mm)	Φ630-1250	Φ800-1600	Φ1000-2000	Φ1250-2500	Φ1600-3150	Φ1600/3500
Bobbin overall width (mm)	475-950	600-1180	750-1500	950-1900	1180-2300	1180-2300
Load capacity ( T)	3	4-8	6-10	12-15	15-20	18-20
Line speed (m/min) Max	100	80	80	65	60	50
Traverse precision (%)	1-2	1-2	1-2	1-2	1-2	1-2

3. Features for Power Wire Cable Portal Type Gantry Traversing Take Up Making Machine:

A. Portal shaped structure, Electrical compacting or relaxing reels and lifting. It has function of lifting together, drop together, lifting separate and drop separate..

B. Portal shaped stand traverses wire locomotive, which is driven by AC motor and controlled by transducer. The traverse speed follows the take-up speed, that make the traversing pitch adjustable step-less. It is with the function of traverse quickly and adjustment.

C. Bobbins clamping protection, the limited protection of up and down bobbins and terminal protection of transverse movement

D. Semi-automatic operating saving time and label
