    SGS Multicore 70HP Power Wire Cable Making Machine Three Phase

    Ask Lasest Price
    Brand Name : I-suntop
    Model Number : I-90/120
    Certification : SGS
    Price : By negotiation
    Payment Terms : L/C,T/T
    Supply Ability : Up to different machine
    Delivery Time : Min.30working days
    • Product Details
    • Company Profile

    SGS Multicore 70HP Power Wire Cable Making Machine Three Phase

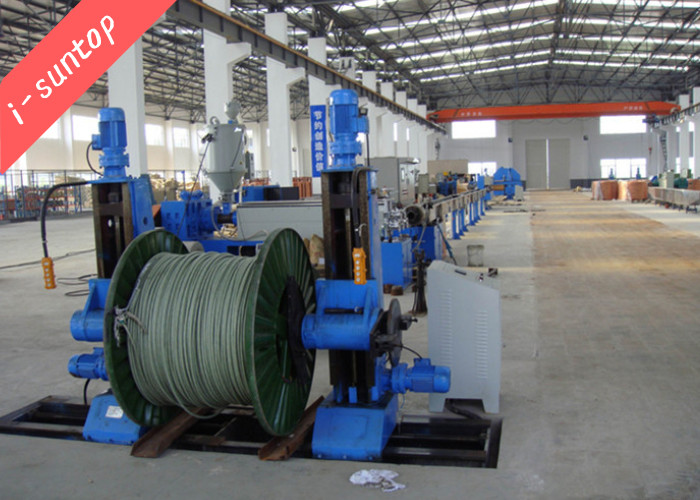

    2/3/4 Multicore Power Wire Cable Sheath Extrusion Making Machine

    i-suntop Electric wire and cable equipments2022022...

    1. Application for 2/3/4 Multicore Power Wire Cable Sheath Extrusion Making Machine :

    suitable for extruding high quality cable jacket or big power cable, low price XLPE, PE, PVC extruder, big transmission power cable machinery.

    2. Specification for 2/3/4 Multicore Power Wire Cable Sheath Extrusion Making Machine :

    model8090120150200
    pay off wayshaftless
    pay off bobbin size(mm)500-630630-800/10001600-20002000-25002000-3500
    screw diameter(mm)80mm90mm120mm150mm200mm
    L/D of screw26:126:128:128:128:1
    extrusion volume(kg/h)200kg/h300kg/h400kg/h680kg/h900kg/h
    main power(HP)40HP60HP70HP100HP150HP
    finished OD7-30mm10-40mm18-120mm30-150mm40-180mm
    cooling devicewater sink
    caterpillar capstan7.5HP 1250KG7.5HP 1600KG11HP 2000KG20HP 2500KG20HP 3200KG
    speed(max.)250m/min200m/min150m/min100m/min100m/min
    take up wayshaftless
    take up bobbin630-800mm630/1500/2000mm2000/2500mm2500/3000mm2500/3500mm

    3. Main parts for 2/3/4 Multicore Power Wire Cable Sheath Extrusion Making Machine :

    Itemqty.
    Active/passive pay-off1set
    Main extruder1set
    1.5m pre-water cooling trough1set
    Diameter gauge1set
    12m Single layer main cooling trough1set
    Caterpillar1set
    power frequency spark tester1set
    Meter counter1set
    take-up traverse machine1set
    Electrical control system (PLC control optional)1set
    Printer(optional)1set

    4. what is your company after-sales service ?
