IEC-60794-1-2 Standard Fiber Optic Cable Crush Test Equipment

I-suntop Optical cable mechanical testing equipmen...

1. Application of IEC-60794-1-2 Standard Fiber Optic Cable Crush Test Equipment:

Fiber optic cable crush test equipment meets the requirements of IEC-60794-1-2 Method E3/E12,According to the detailed specifications, the cable is placed under compression and then the fiber is attenuated.

It uses a servo control system to apply compressive force to the cable at a constant speed and maintain compression for a specific period of time.

The plate is mounted on the bottom of the movable crosshead to allow the cable sample to be crushed
A crushing force is uniformly applied between the steel substrate and the movable steel plate over the length of the sample.

2. Main Technical Specifications of IEC-60794-1-2 Standard Fiber Optic Cable Crush Test Equipment:

3. Factory Installation requirements of IEC-60794-1-2 Standard Fiber Optic Cable Crush Test Equipment:

• Host power supply: single phase, AC220V±10%, 50～60Hz, 0.8kW.
• Computer power supply: single phase, AC220V±10%, 50～60Hz, 0.5kW.
• Install onto a stable base, levelness≤0.2/1000, and room of more than 1 m around.
• Ambient temperature: 25℃±10℃, humidity: ≤80% non-condensing.
• No vibrating or corrosive media indoor

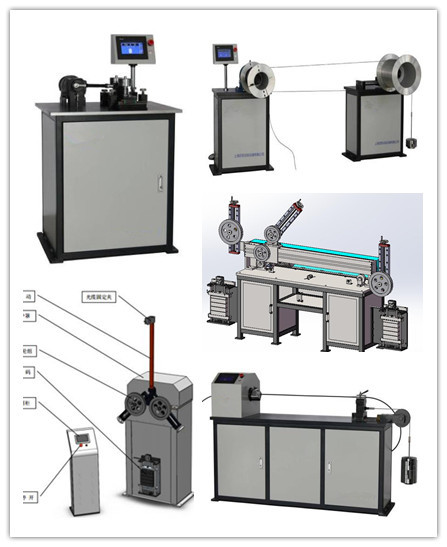

4. Other related test equipments:

We are a professional supplier of fiber optic cable equipment, wire and cable-making machines and stranding machines based in China. With over a decade of experience in the industry, we have established ourselves as a reliable and innovative provider of high-quality equipment to clients worldwide.

Our product range includes a wide variety of fiber optic cable equipment, including FTTH drop cable extrusion machines, fiber coloring and rewinding machines, loose tube extrusion lines,SZ stranding machine Etc.We also specialize in wire and cable-making machines, such as BV wire and cable-making machines, Lan cable complete set machines,Wire coiling and winding machines, and bunchers,twisting, stranding machine.

At our manufacturing facility, we utilize the latest technology and production techniques to ensure that our products are of the highest quality. We pride ourselves on providing exceptional customer service and support, and we are dedicated to meeting the unique needs of each of our clients. With competitive pricing and a commitment to excellence, we are confident that we can provide the ideal solution for all of your fiber optic cable and wire cable equipment needs.
