    Automatic Digital Type 3500Hz Spark Test Machine Wire Cable Making Machine

    Ask Lasest Price
    Brand Name : I-suntop
    Model Number : GF-15
    Certification : SGS
    Price : By negotiation
    Payment Terms : L/C,T/T
    Supply Ability : Up to different machine
    Delivery Time : Min.30working days
    • Product Details
    • Company Profile

    Automatic Digital Type 3500Hz Spark Test Machine Wire Cable Making Machine

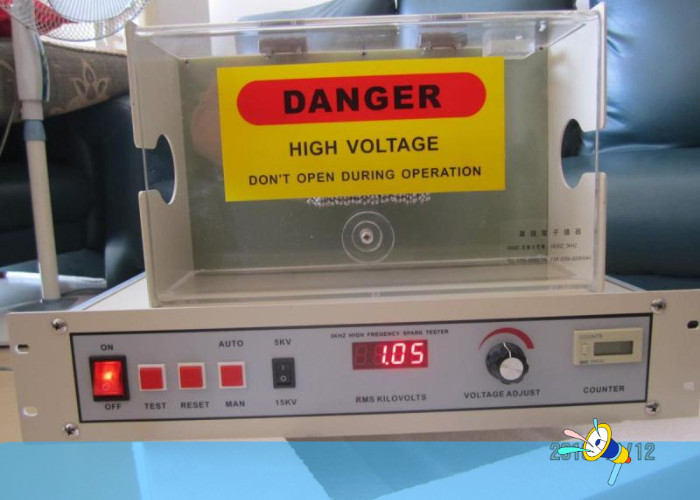

    Digital Type High Frequency Spark Test Machine For Wire And Cable

    i-suntop Electric wire and cable equipments2022022...

    1. Application for Wire And Cable Spark Test Machine

    Test Voltage:1.0~15.0KV. Cable Diameter: 0~25mm. Output Frequency: 2.5-3.5KHz normal. Fast recovery time after fault (0.1s)
    The Spark Tester is a fast and reliable instrument used in distinguish wire faults and detecting bare wires. Its high-speed fault detection feature gives you prompt information without worsening the condition of the wire after the test.
    The use of high frequency (3KHz) enables a traditional commercial power frequency bead chain electrode to be shortened to 120mm HS015E Model.

    2. Features for Wire And Cable Spark Test Machine

    • Fast recovery time after fault (0.1 second).
    • Occupies short space in line and with improvement factor of 50 compared to
    • traditional CT power frequency electrode.
    • Voltage Display: 0.0~15.0KV digit, 14.2mm LED display, Accuracy +/- 1% of reading
    • Output Control: Front Panel Reset in Manual Mode. Closure time is selectable
    • 0.2s/2s/5s in main board by jumper JP, Form C relay contacts (250VAC/5A) for all
    • wire faults detected.
    • Limits the fault current without damaging the test equipment.
    • Short exposure time to corona does not degrade nor damage good insulation.
    • Distinguishes all wire faults and detects bare wire.
    • Safety Switch interlock.

    3. Mian Paramters for Spark Test Machine

    Output Voltage:

    0 - 15KV

    Output voltage regulation range:

    0.1 ~ 15KV, 100V per adjustment;

    Defect Records:

    up to 999 records;

    MAX Diameter of Cable:

    25mm

    Test frequency:

    2500 ~ 3500Hz, varying with theequivalent load capacitance;

    Electrode:

    beads-style, meet UL1581 standards;

    Electrode length:

    50mm;

    Test mode:

    manual, automatic;

    Automatic leak detection recovery time:

    < 20ms;

    Output current:

    4mA for resistive load, 40mA for capacitive load

    Max line speed allowed:

    3067m/min, meet BS5099 standards; 1000m/min, meet UL1581 standards;

    Output relay's capacity:

    2A, 250VAC;

    Serial communication:

    RS232/422 optional;

    Max communication distance:

    300m;

    The cover of electrode has safe lock;

    Power supply:

    200 - 240VAC, 50/60Hz;

    Environmental temperature:

    -5℃~ 50℃

    Relative humidity:

    20% ~ 85%;

    Power consumption:

    ≤150W;

    Weight:

    about 13 kg.
