Semi Automatic Wire Winding Equipment 80W Coiling And Packing Machine

Ask Lasest Price
Brand Name :	I-suntop
Certification :	SGS
Price :	By negotiation
Payment Terms :	L/C,T/T
Supply Ability :	Up to different machine
Delivery Time :	Min.30working days

Add to Cart

Product Details
Company Profile

Semi Automatic Wire Winding Equipment 80W Coiling And Packing Machine

Semi-Automatic Cable Winding And Tying Machine Wire Coiling And Packing Machine

i-suntop Electric wire and cable equipments2022022...

1. Application for Semi-Automatic Cable Winding And Tying Machine Wire Coiling And Packing Machine

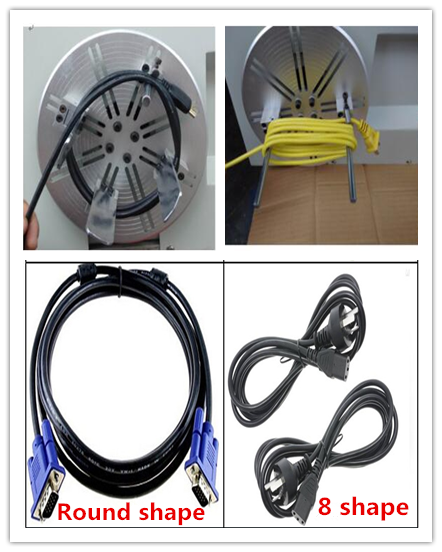

This semi automatic wire twist tie machine is suitable for winding and tying USB cable, headphone cable, AC/DC power cable,network cable, telephone cable, audio/video cable, HDMI cable, etc. It can customize the number of coils, the number of ties and the length of the cable tie.

2. Specification for Semi-Automatic Cable Winding And Tying Machine Wire Coiling And Packing Machine

Model	T40	T35	T30
Winding Length	50-230mm (can adjustable )	50-200mm (can adjustable)
Tying Diameter	Φ25-65mm	Φ20-45mm	Φ5-40mm
Cable Tie Length	130-260mm	110-200mm	60-140mm
Winding Speed	30 speed options (Can be set)
Number of Windings	1-999 cycles(Can be set)
Power	80W
size	555647cm
weight	39KG

3. TFeatures for Semi-Automatic Cable Winding And Tying Machine Wire Coiling And Packing Machine

* PLC program control, LCD text parameter setting, easy to operate

* Using stepper motor, the worker only needs to put the wire on the winding port and step on the foot pedal once to start the automatic winding, and then put the winded wire at the tying port, and the machine can automatically tie the wire
* This machine can customize the number of coils, the number of ties and the length of the cable tie
* The motor is equipped with brake control, and the reel can be turned and stopped at a fixed point, which is very convenient for next operation
