    IPC 70mm 24 Cores Distribution Fiber Optic Cable Equipment

    Ask Lasest Price
    Brand Name : I-suntop
    Model Number : I-70
    Certification : SGS
    Price : By negotiation
    Payment Terms : L/C,T/T
    Supply Ability : Up to different machine
    Delivery Time : Min.50working days
    • Product Details
    • Company Profile

    IPC 70mm 24 Cores Distribution Fiber Optic Cable Equipment

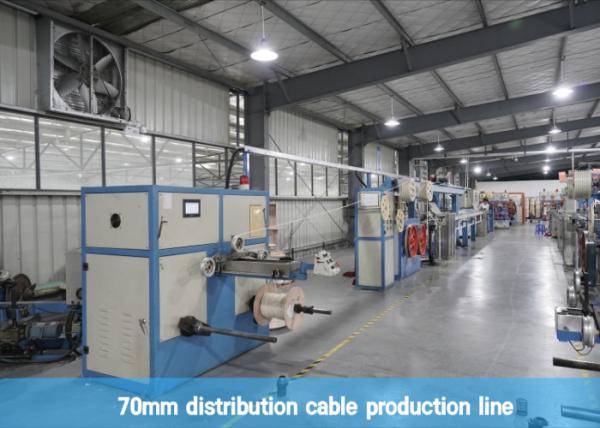

    12/24cores Distribution Fiber Optic Cable Equipment Production Line

    i-suntop fiber optic cable machine 20220228.pdf

    1.Description for 12/24cores Distribution Fiber Optic Cable Equipment Production Line:

    Distribution Fiber optic cable machine mainly is used to produce tight buffered fiber which has the cores 2~24 cores.


    2.Main specification of 12/24cores Distribution Fiber Optic Cable Equipment Production Line:

    Machine type70mm
    Suitable extrusion materialLSZH,PVC
    Design speedMax.120m/min
    No of cage stranding machine12/24 reels
    Specification of cage stranding machine pay-off reels400mm
    Core wire diameter0.6/0.9
    Pay-off tension of tight buffered fiber1N-3N
    Aramid yarn pay off(passive or active optional)12/16/24
    Take-up reels SpecificationPN800 reel - PN1250 reel
    excess loss after extrusion1550nm<=0.02dB/km(single mold optical fiber)
    Center height of machine1000mm from background

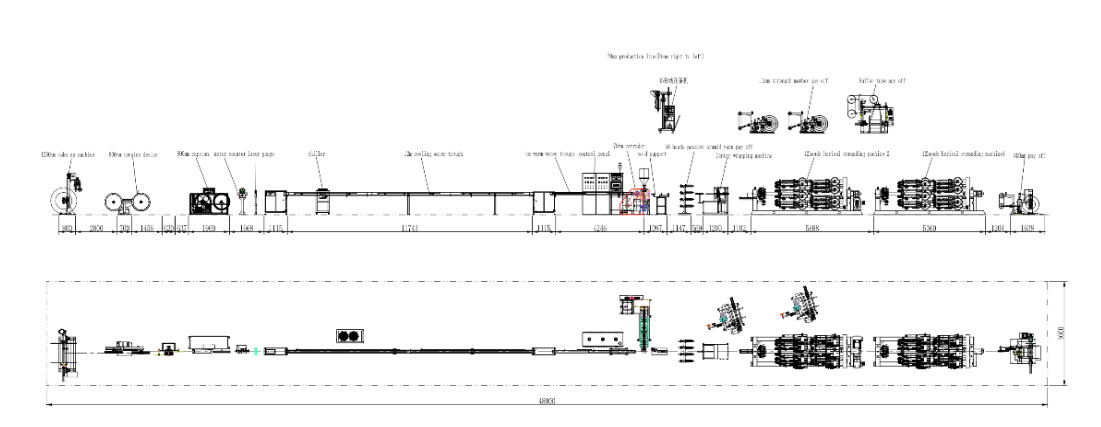

    3.Datesheet for 12/24cores Distribution Fiber Optic Cable Equipment Production Line:

    ItemsQty.
    Φ800-1250 central strength-member pay-off1set
    12heads cage stranding machine2sets

    24 heads aramid yarn pay-off (motorized aramid yarn pay-off option available)

    1set
    Mobile mold supporting1set
    70 Main extruder1set
    75kg Dryer +hopper1set
    IPC+PLC control penal1set
    moving water trough and warm water tank1set
    fixed type cooling water trough and cooling water tank+4pchiller1set
    Single type laser diameter gauge1set
    9m Accumulator1set
    800mm dual-wheel capstan1set

    φ800 dual-wheel tension unit

    1set

    800-1250mm shaftless longmen type take-up machine

    1set
