1.1-1.5mm Micro Loose Tube Extrusion Production Line For Micro Air
Blown Cable
i-suntop
fiber optic cable machine 20220228.pdf
1.Description for 1.1-1.5mm Micro Loose Tube Extrusion Production Line For Micro Air
Blown Cable:
mainly suitable for extruding of loose tube in which 2-12 cores
optic fiber are contained and filler element of 1.5-3.5mm.
2.Advantage for 1.1-1.5mm Micro Loose Tube Extrusion Production Line For Micro Air
Blown Cable:
A. The optical fiber pay-off is the motorzed pay-off device, the
tension of the pay-off line is stable and reliable, and the tension
is adjustable.
B. The extruder adopts special screw, which has good extrusion
linearity and high extrusion efficiency.
C Jelly filling device has professional de-bubble effect, euipped
with precision metering pump and a precision weighing device to
ensure timely replenishment of ointment.
D·Take-up is double reels automatic changed without deceleration,
and high production efficiency.
E. International industrial computer technology control system with
high degree of automation, it can be linked with MES, ERP systems,
real time tracking and managing production..
F .The main control systems and components are international famous
brands, and the production line has high stability and reliability.
3.Technical parameters of 1.1-1.5mm Micro Loose Tube Extrusion Production Line For Micro Air
Blown Cable:
| NO. | Name | Parameters |
| 1 | Application field | for extruding 2 – 12 core fiber loose tube |
| material suitable for PBT |
| 2 | Core NO. | 2 – 12 cores |
| 3 | Fiber payoff tension | 0.4N～1.5N±0.05N |
| 4 | Fiber optic cable reel | Φ236×Ф160×108 mm |
| Φ236×Ф160×236 mm |
| 5 | Hot water temp. | room temperature – 70 ° C ± 2 ° C |
| 6 | Take-up tension | 2.5 – 8.0N |
| 7 | Structure speed | 800m/min |
| 8 | Production speed | 20 – 600m/min (Φ1.8mmPBT beam tube) |
| 9 | Length control | (0 – 3‰) ± 0.2‰ |
| 10 | Length meter error | <1.5‰ |
| 11 | Wire reel specification | PN630mm PN800mm |
| 12 | Additional attenuation | <0.02db/km (for single mode fiber only) |
| 13 | Uniformity of outer diameter and excess length | ≤ ±0.05, ±0.2‰ |
| 14 | Production line length | ≤ 35M |
| 15 | Equipment power | 70KVA 380V 50HZ AC 3 phase |
| 16 | Compressed air | 0.5 – 0.6MPa |
4.Line Configuration for1.1-1.5mm Micro Loose Tube Extrusion Production Line For Micro Air
Blown Cable:
| item | All parts’ name and specification | QTY | Function for reference |

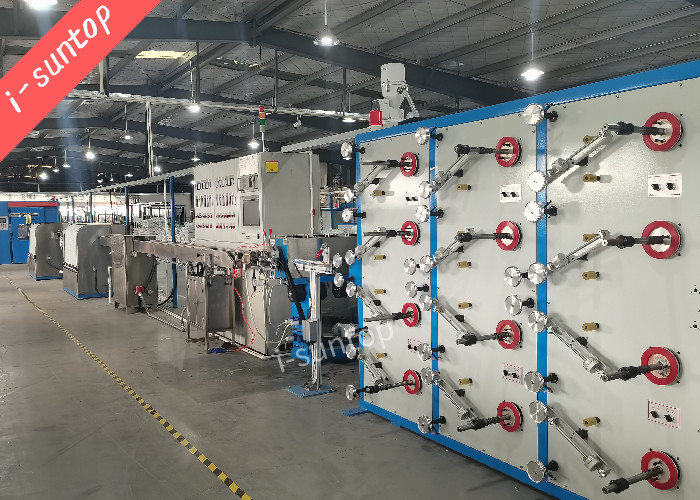

| 1 | 12 heads optical fiber motorized pay-off rack | 1 | Fiber pay off |
| 2 | Oil-Cream Device with Air bubble remover +vacuum-pumping | 1 | Oil filling |
| 3 | 40mm Extruder and auxiliaries (including drying, feeding machine,
machine head and color masterbatch mixer) PBT screw,Adjust the machine head + vacuum device | 1 | Extrude wire |
| 4 | 50KG Dryer machine and automatic hopper | 1 | Material dryer and suck |
| 5 | PC+PLC Electric apparatus(S7-300) | 1 | System control |
| 6 | 4m warm temperature water trough+water tank | 1 | Cooling wire |
| 7 | Ф630mm single wheel capstan+Warm water spraying device | 1 | Pulling wire |
| 8 | Ф630mm single wheel capstan+ cold water spraying device | 1 | Cooling wire and pulling wire |
| 9 | laser diameter gauge | 1 | Diameter test |
| 10 | Take up Tension dancer | 1 | Tension control |
| 11 | φ800mm Double -spool full auto-take up machine | 1 | Roll and rewinding wire |
