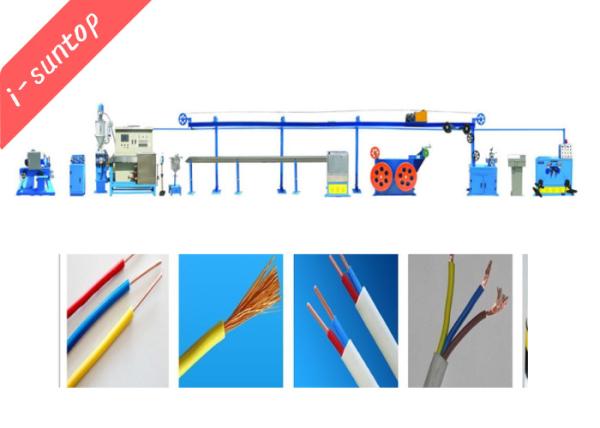

    PVC Housing Wire Extrusion Machine For 1.5 / 2.5mm Square

    PVC Housing Wire Extrusion Machine For 1.5/2.5mmsquare

    i-suntop Electric wire and cable equipments2022022...

    1. Application for PVC Housing Wire Extrusion Machine For 1.5/2.5mmsquare :

    This equipment is applicable to PVC Housing Wire Extrusion Machine For 1.5/2.5mmsquare,These cables are used for Transmission of Low voltage Signals, Electric Motors, D.C. Power Transformers. Panel Boards, Battery cables etc.

    2. Specification for PVC Housing Wire Extrusion Machine For 1.5/2.5mmsquare :

    ModelGF-50/70+35mm
    pay-off typemotorised single head pay-off/double spool tension pay-off/magnetic type pay-off
    pay-off bobbin sizePN-400-630mm
    screw diameterΦ50/70mm
    L/D of screw26:1 or 25/1
    Extrusion ouput150kg/hour
    Main Extruder power20/30HP
    Finished wire diameter1.5-12mm
    Capstan power3/5HP
    Cooling trough1.5+8m
    cable accumulator typehorizontal
    Accumulation lengthMax.200m
    Max.structure speed500m/min
    take-up bobbin sizePN400-630mm
    take-up typedouble spool take-up(bobbin or reel)

    3. Main parts for PVC Housing Wire Extrusion Machine For 1.5/2.5mmsquare:

    Itemqty.
    Double head passive pay-off1set
    tension dancer1set
    50/70mm Main extruder1set
    35mm extruder for stripe extrusion1set
    1.5m pre-water cooling trough1set
    X type Diameter gauge1set
    8m Single layer main cooling trough1set
    500mm Dual wheel capstan1set
    9m horizontal type cable accumulator1set
    15KVpower frequency spark tester1set
    Meter counter1set
    400-630mm dual reel take up1set
    Electrical control system (PLC control optional)1set
    Powder device(optional)1set
    Printer(optional)1set
