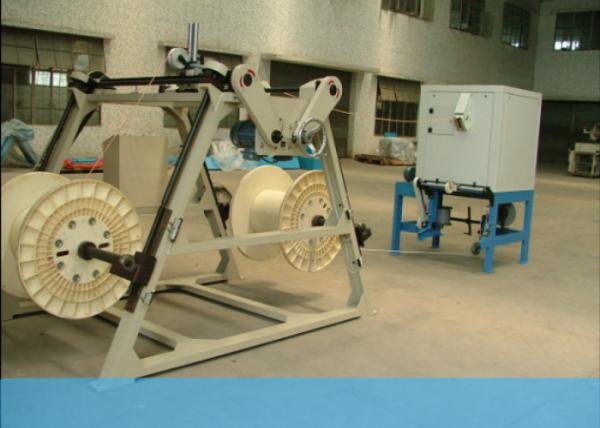

16 Spiddles Braiding Machine For Coaxial Cable / Lan Cable

16 Spiddles Braiding Machine For Coaxial Cable/Lan cable

i-suntop Electric wire and cable equipments2022022...

1. Application for 16 Spiddles Braiding Machine For Coaxial Cable/Lan cable

It is used to braid cable soft shield layer like copper wire, soft iron wire, low carbon steel wire, al-mg alloy etc.

2. Specification for 16 Spiddles Braiding Machine For Coaxial Cable/Lan cable

type	16 carrier high speed braider with cover
Max.braided diameter	Φ14mm
Number of strands per spiddle	Φ0.25mm(1-7) Φ0.15mm(1-13) Φ0.12mm(2-13) Φ0.08mm(3-13) Φ0.05mm(4-13)
Max Rotation speed	180RPM (the general speed is 150 RPM)
Pitch	The pitch may be regulated with steps by transposing dears between 5.35 and 63.5mm.
Motor for the main machine	380V 1.1KW
Take up Reel size	Φ800mm*600mm
take-up and pay-off spindle hole	Φ>38mm≤80mm

3. Our service

24hours online service, engineers with passport service overseas.
It’s the after-sales support that makes delivery complete”.
① Since the shipment date, our company free after sale maintenance service guarantee period is: 12 months
② Our company provides long term spare supply, technical support and maintenance service for the machine, but we will charge for travel fee.
We guarantee when we get the information of the customer, our engineers will analyze immediately, then response as soon as possible, if need our engineers come, 24hour will be arrived inland, and one week oversea.
