Uni - Tube Air - Blown Micro Optical Cable Production Extrusion Line

Uni-Tube Air-Blown Micro Optical Cable Production Extrusion Line

i-suntop fiber optic cable machine 20220228.pdf

1.Description for Uni-Tube Air-Blown Micro Optical Cable:

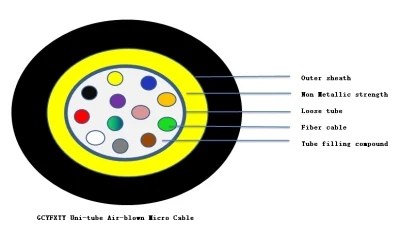

Optical Fibers are housed in a loose tube that is made of high-modulus plastic and filled with tube filling compound. Aramid yarns are placed outside the loose tube as the strength member, then a sheath with grooves is extruded. This type of cable is particularly applicable to air-blowing constructions in access networks.

2.Which process machine for GYFY 12cores ASU-Unitube Optical Cable:

Fiber coloring and rewinding machine
Loose tube production line
SZ stranding machine
Cable Sheathing line

3.Specification of fiber coloring and rewinding machine

Control system	Man-Machine interface + PLC Control
Lamp power	Adopt taiwan brand light power
Lamp	Can choose Import UV-A ,ensure the curing quantity
Traverse device	Automatic take up and traverse devices
structure speed	Max.1800
coloring speed	Max.1500
coloring layer thickness	3~5μm
pay off tension	0.4N～1.2N±0.05N
traverse pitch	0.1～1.5mm
excess loss after coloring	≤0.02dB/Km
MAX. Optical fiber reel size	Φ236 Φ160108Φ25.4mm(25KM reel) Φ236Φ160225Φ25.4mm(50KM reel)
power	380V±10% 50Hz Three phase five line
Coloring capacity	about 90KM/h.
machine weight	850KG

3.Specification of Loose tube production line:

Extruder type	50×25 Extruder
extrusion material	PBT
structure speed	Max.800m/min
production speed	(1.8mm PBT loose tube)
No of optical fiber pay-off reels	12
Specification of optical fiber pay-off reels	25km and 50km standard optical fiber reels
Pay-off tension of optical fiber	0.4N-1.5N
Take-up reels Specification	PN630reel and PN800 reel
excess loss after extrusion	≤ 0.02db / km (sm fiber@ 1310nm, 1550nm)
Center height of machine	1000mm from background

4.Specification of SZ stranding machine:

structure speed	Max.100m/min
No of loose tube pay-off reels	12
Specification of loose tube pay-off reels	PN630-800mm
SZ twisting pitch	50mm-800mm
SZ reverse angle	max: 1800rpm
The maximum speed of embossing heads	max: 4000rpm
Embossing pitch	20mm-500mm
Additional loss	≤ 0.02db / km (sm fiber)
Power supply requirements	68KVA, AC380V ±10% 50HZ three-phase five-wire
Power consume	about 40 KW/h
Capacity	4~6km/h

5.Specification of Cable sheathing line:

Diameter of cable core	5-25mm
Diameter of loose tube	1.5-3mm
Diameter of cable	5-35mm
Thickness of cable wall	1.0-3.0mm
Line structure speed	100m/min
Line production speed	80m/min(cable dia:10mm)
Additional attenuation	0.02dB/km (1310and 1550)
Extruder output	Max280kg/h
