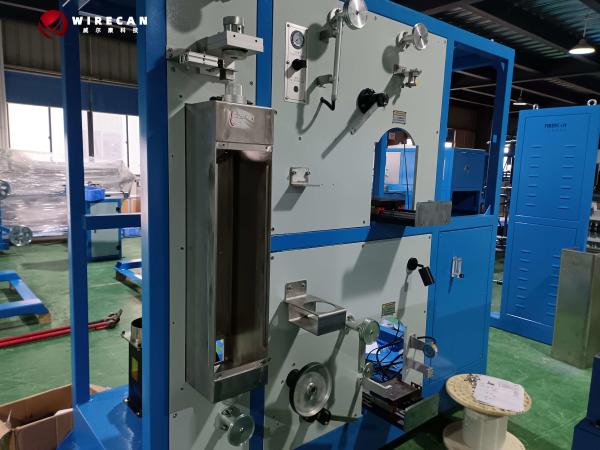

Dongguan Wirecan Technology Co., Ltd.'s optical fiber coloring machine is a
specialized piece of equipment that is used in the production of
optical fiber cables. The machine is designed to apply a colored
coating to the optical fibers, which helps to identify the fibers
and make them easier to work with.
One of the key features of the optical fiber coloring machine is
its high-precision coating technology. The machine uses a precise
application process to ensure that the colored coating is applied
evenly and consistently to the fibers. This helps to ensure that
the fibers are properly identified and can be easily distinguished
from each other.
Another important feature of the machine is its versatility. The
machine is capable of applying a wide range of colors to the
optical fibers, allowing manufacturers to produce cables with a
variety of color combinations. This is useful in applications where
multiple fibers need to be distinguished from each other, such as
in multi-fiber cables.
Overall, Dongguan Wirecan Technology Co., Ltd.'s optical fiber coloring machine is a
valuable tool for the production of high-quality optical fiber
cables. Its high-precision coating technology and versatility make
it an essential piece of equipment for manufacturers in the optical
fiber industry.
1, Equipment application :
The optical fiber coloring and rewinding machine is mainly applied
for coloring the surface of optic fibers, convenient to identify
the multi-fibers within the loose tube. Also can be used to rewind
fibers and coat the nylon-tightened fibers with silicone gel.
2, features:
a main function : coloring the surface of optic fibers
b, auxiliary function:rewinding the optic fiber
c, the machine uses an IPC+PLC control system, main electric parts
are imported,
d, high production efficiency, and convenient operation.
3, Equipment application:
| No optical fiber | 1 piece |
| Coloring speed | 1000-1200m/min or 1500-1600m/min |
| Structure speed | L1500m/min or 1800m/min |
| Rewinding speed | <=1500n/min or 1800m/min |
| Coloring layer thickness | 3-5um |
| Pay-off tension | 0.4N-1.2N±0.05N |
| Traversing pitch | 0.2-1.5mm |
| Excess loss after coloring | <=0.02db/km |
| Optical fiber reel size(MAX) | ø350×ø25.4×ø300mm,weight:5kg(25km/50km reel) |
4, Main parts brand:
Motor: Siemens motor
Transducer: American Emerson transducer
IPC: Taiwan Yanhua
PLC: Siemens S7 series
Temperature controller: FOTEK temperature controller PID smart type
Screw and barrel: Designed by Taiwan LIQI company, Produced by
Zhejiang Honghu company
Bearing: Japan NACHI
electrical parts: adopt OMRON, FOTEK, SHILIN brands, etc.
